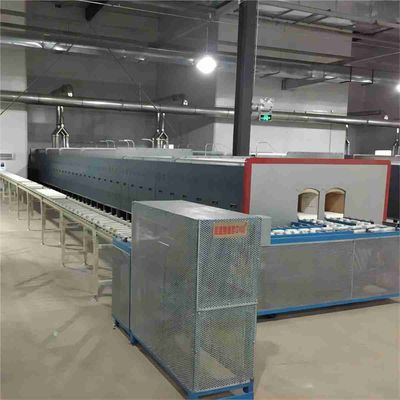

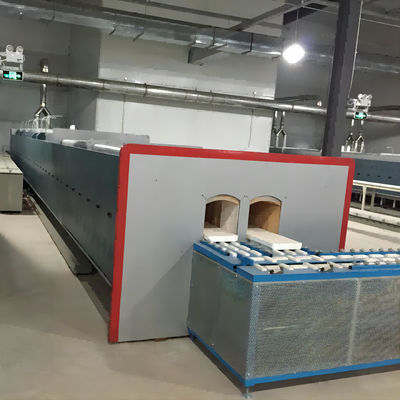

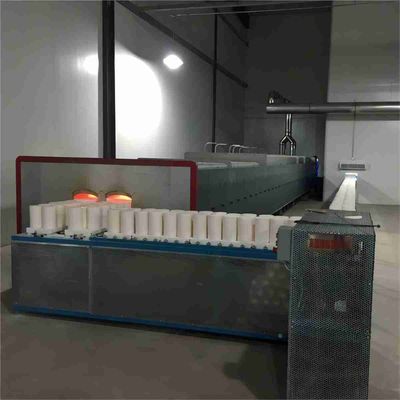

Fully automatic sintering high-temperature push plate furnace
The push plate furnace is used to sinter ceramic parts at temperatures up to 1750°C. This type of furnace is lined with dense bricks or lightweight refractory bricks. There are also designs with fiber ceilings, but these are limited to applications with a maximum temperature of 1500°C.
Advanced ceramic materials, alumina zirconia structural parts, electronic components, ceramic filters
| Maximum operating temperature | 1700℃ |
| Chamber size | L18000*W300 (double hole)*H250 (mm) can be customized according to the actual process of the customer |
| Push plate size | 280*280*50 |
| Sintering atmosphere | Air |
| Heating element | High-quality silicon carbide rods are used in the heating zone, and high-quality silicon-molybdenum rods are used in the high-temperature zone |
| Equipment Dimensions | L22000*W1800*H2000(mm) |
| Rated power | 320KW |
| Heat preservation power | 160KW |
1.Temperature uniformity: less than or equal to ±5°C.
2.Special intake and exhaust structure design can ensure unobstructed exhaust during glue removal, and the sintered ceramic chips are pollution-free.
3. It can be equipped with the VOC waste gas incinerator developed by Qianjin itself, which can effectively treat the waste gas discharged during debinding.
4.The heating and cooling rate is controllable, combined with the special transmission structure design, the transmission is stable.
