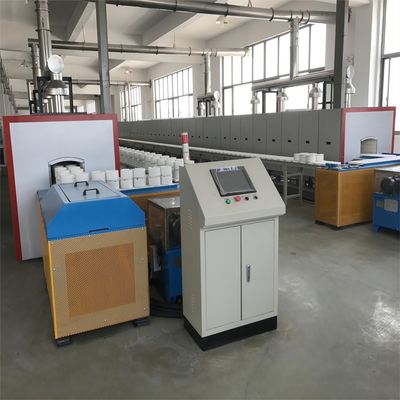

High temperature sintering continuous pusher furnace with silicon carbide rods for alumina zirconia structural parts
The pusher furnace is used to sinter ceramic parts at temperatures up to 1750°C. This type of furnace is lined
with dense bricks or lightweight refractory bricks.
It is an ideal material for sintering, drying and annealing of advanced ceramic materials, alumina zirconia structural parts, electronic components, ceramic filters
| Maximum operating temperature | 1700℃ |
| Chamber size | L18000*W300 (double hole)*H250 (mm) can be customized |
| Push plate size | 280*280*50 |
| Sintering atmosphere | Air |
| Heating element | High-quality silicon carbide rods are used in the heating zone, and high-quality silicon-molybdenum rods are used in the high-temperature zone |
| Equipment Dimensions | L22000*W1800*H2000(mm) |
| Rated power | 320KW |
| Heat preservation power | 160KW |
1. Multi-surface heating method is adopted, and the temperature difference of the furnace can reach within ±5°C
2.Imported light insulation materials are used for heat preservation, high efficiency and 20-30% energy saving than traditional kilns
3.The production uses a special transmission mode, the system is stable, reliable, and runs smoothly which can highly improving product performance
4. Suitable for mass production, from pre-firing to product ceramic firing, the process is stable and the consistency is good.
With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.
We will well pack the goods based on the kinds of furnace and customer's requirement.
