Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire

1
MOQ
Negotiable
Price
Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Working Temperature: 1150℃
Chamber Size: 200*150*150(mm)
Furnace Size: 600*550*750(mm)
Volume: 4.5L
Temperature Control Method: PID Auto Control
Heating Element: Resistance Wire
Temperature Control Accuracy: +1℃
Power: 3.5KW
OEM/ODM: Can
Package: Plywood Package
Highlight:

Laboratory Box Type Furnace

,

Box Type Furnace 1200C

,

Heat Treatment high temperature electric furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: KSF12
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 300 PCS/Month
Product Description

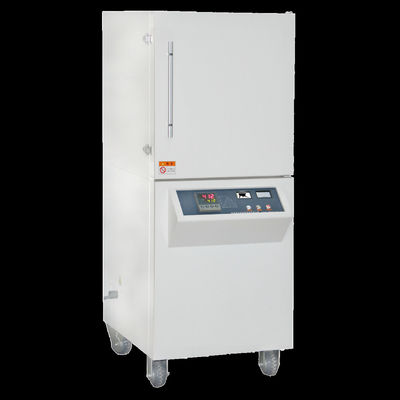

1200℃ Heat Treatment Laboratory Electric High Temperature Furnace With Resistance Wire

1﹑Box Furnaces

This box-type furnace is improved on the basis of the traditional muffle furnace. It not only has a beautiful and stylish appearance, but also is smaller, lighter and more energy-efficient. The heating wire and the furnace adopt vacuum adsorption integrated molding technology, which has better heat preservation and durability. Widely used for sintering and annealing in laboratories under 1200°C, baking in the denture processing industry, pre-sintering of zirconium discs, etc.



2﹑Technical specification
Model KSF-1-12 KSF-3-12 KSF-4-12 KSF-8-12
Max Temperature 1200℃
Working Temperature ≤1050℃
Heating rate suggestion:10℃/Min Max:30℃/Min
Chamber size 100*100*100(mm) 150*150*200(mm) 200*200*300(mm) 300*300*400(mm)
Volume 1L 4.5L 12L 36L
Furnace size 250*280*380(mm) 390*400*600(mm) 650*520*600mm 750*640*830(mm)
Display mode Highlight digital tube display
Temperature control 30 segment program PID auto control,Overcurrent protection, overtemperature and burnout alarm
Temperature accuracy ±1℃
Heating element heating wire with Molybdenum-doped iron-chromium-aluminum alloy
Temperature measuring element K type Thermocouple
Chamber material High purity alumina tube
Power 1.0KW 3.5KW 4.5KW 8KW









































Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 0

3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 1



4﹑Customer Case in China



The first Aluminum-air battery graphene conductive film production line in china

Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 2



The first ITO target powder roller furnace continuous production line in china

Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 3



The first alumina continuous fiber production line in china

Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 4

5﹑Foreign Customer

Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 5

6﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.

Laboratory Box Type Furnace 1200C Heat Treatment High Temperature Electric Furnace With Resistance Wire 6
