Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace

1
MOQ
Negotiable
Price
Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Working Temperature: 1350℃
Chamber Size: Customized
Furnace Size: Customized
Volume: Customized
Temperature Control Method: PID Auto Control
Heating Element: Silicon Carbon Rod
Temperature Control Accuracy: +1℃
Power: 3.5KW
OEM/ODM: Can
Package: Plywood Package
Highlight:

1400C Box Type Furnace

,

1350C Box Type Furnace

,

High Temperature Electrical Resistance Furnace
Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: KSF12
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 300 PCS/Month
Product Description

1400℃ S Type Thermocouple Heat Treatment High Temperature Electrical Resistance Furnace With Silicon Carbon Rod

1﹑Box Furnaces

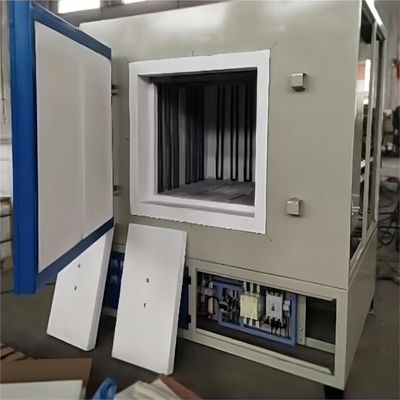

This box furnace is used for sintering and annealing in air up to 1400°C. It is an ideal product for high-temperature sintering, metal annealing, and quality inspection in universities, research institutes, and industrial and mining enterprises.



2﹑Technical specification
Model No. KSF-1-14 KSF-3-14 KSF-4-14 KSF-8-14
Max Temperature 1400℃
Work temperature ≤1350℃
Heating rate ≤20℃/min(suggestion:10℃/min)
Chamber size 120*120*120(mm) 160*160*160(mm) 220*220*260(mm) 300*300*400(mm)
Volume 1.7L 4.1L 12.6L 36L
Furnace size 250*280*380(mm) 460*530*730mm 560*650*830mm 750*640*1530(mm)
Weight   70KG 85KG
Display mode Highlight digital tube display
Temperature control

30 segment program PID auto control,Overcurrent protection,

overtemperature and burnout alarm
Temperature accuracy ±1℃
Heating element High Purity Silicon Carbon Rod
Temperature  element S type Thermocouple
Chamber material High purity alumina tube
Power 1.5 KW 3KW 4KW 8KW
Package Plywood package





Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 0

3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 1



4﹑Customer Case in China



The first Aluminum-air battery graphene conductive film production line in china

Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 2



The first ITO target powder roller furnace continuous production line in china

Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 3



The first alumina continuous fiber production line in china

Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 4

5﹑Foreign Customer

Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 5

6﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.

Heat Treatment 1400C Box Type Furnace S Type Thermocouple High Temperature Electrical Resistance Furnace 6
