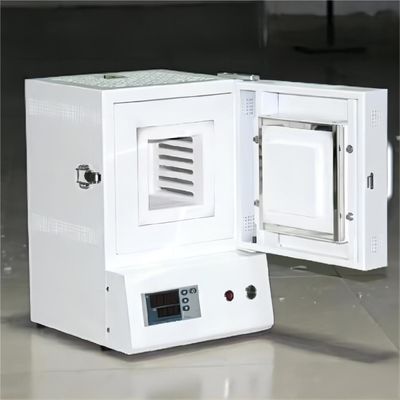

This box furnace is used for sintering and annealing in air up to 1400°C. It is an ideal product for high-temperature sintering, metal annealing, and quality inspection in universities, research institutes, and industrial and mining enterprises.
Advantage
1. The furnace cavity is made of high-purity alumina fiber, which has excellent thermal insulation performance.
2. Double-layer furnace shell and additional air cooling device ensure safe shell temperature.
3. The high-grade special heating element has the best anti-chemical reaction performance between the charge and the heating element.
| Model No. | KSF-1-14 | KSF-3-14 | KSF-4-14 | KSF-8-14 |
| Max Temperature | 1400℃ | |||
| Work temperature | ≤1350℃ | |||
| Heating rate | ≤20℃/min(suggestion:10℃/min) | |||
| Chamber size | 120*120*120(mm) | 160*160*160(mm) | 220*220*260(mm) | 300*300*400(mm) |
| Volume | 1.7L | 4.1L | 12.6L | 36L |
| Furnace size | 250*280*380(mm) | 460*530*730mm | 560*650*830mm | 750*640*1530(mm) |
| Weight | 70KG | 85KG | ||
| Display mode | Highlight digital tube display | |||
| Temperature control |
30 segment program PID auto control,Overcurrent protection, overtemperature and burnout alarm |
|||
| Temperature accuracy | ±1℃ | |||
| Heating element | High Purity Silicon Carbon Rod | |||
| Temperature element | S type Thermocouple | |||
| Chamber material | High purity alumina tube | |||
| Power | 1.5 KW | 3KW | 4KW | 8KW |
| Package | Plywood package | |||
With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.
We will well pack the goods based on the kinds of furnace and customer's requirement.
