Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization

1
MOQ
Negotiable
Price
Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization
Features Gallery Product Description Request A Quote
Features
Specifications
MAX Temperature: 1700℃
Working Temperature: 1650℃
Furnace Atmosphere: Ammonia Decomposition Gas
Chamber Size: Customized
Push Plate Size: L240*W240*H35mm
Furnace Size: Customized
OEM: Can
ODM: Can
High Light:

Industrial Hydrogen Reduction Furnace

,

Hydrogen Reduction Furnace Heat Treatment

,

Ceramic Metallization high temp furnaces

Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: HRF
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 100PCS/month
Product Description

Customized Heat Treatment Industrial Hydrogen Furnace For Ceramic Metallization

1﹑Application

The hydrogen furnace is designed for high temperature processing of materials in wet or dry hydrogen, inert gases or other mediums.

Hydrogen furnace can be used for ceramic sintering or metallization, brazing, glass parts for sealing metal parts annealing and purification. It can also be used for sintering powder metallurgy and semiconductor alloy.In operation, pay attention to safety of air circuit, circuit and water system, especially to prevent leakage into the air, so as to avoid high temperature hydrogen spontaneous combustion explosion accident.

2﹑Technical specification

MAX temperature 1700℃
Working temperature 1650℃
Heating element High-quality imported resistance wire(low temperature area),  corundum molybdenum wire plate (high temperature area)
Furnace atmosphere ammonia decomposition gas
Chamber size L12000*W260*H200mm(with push plate’s height),also can be customized
Push plate size L240*W240*H35mm
Furnace size L16000*W3000*H1680mm
Rated power 160KW
Working power around 85KW
Cross section temperature difference

≤±4℃

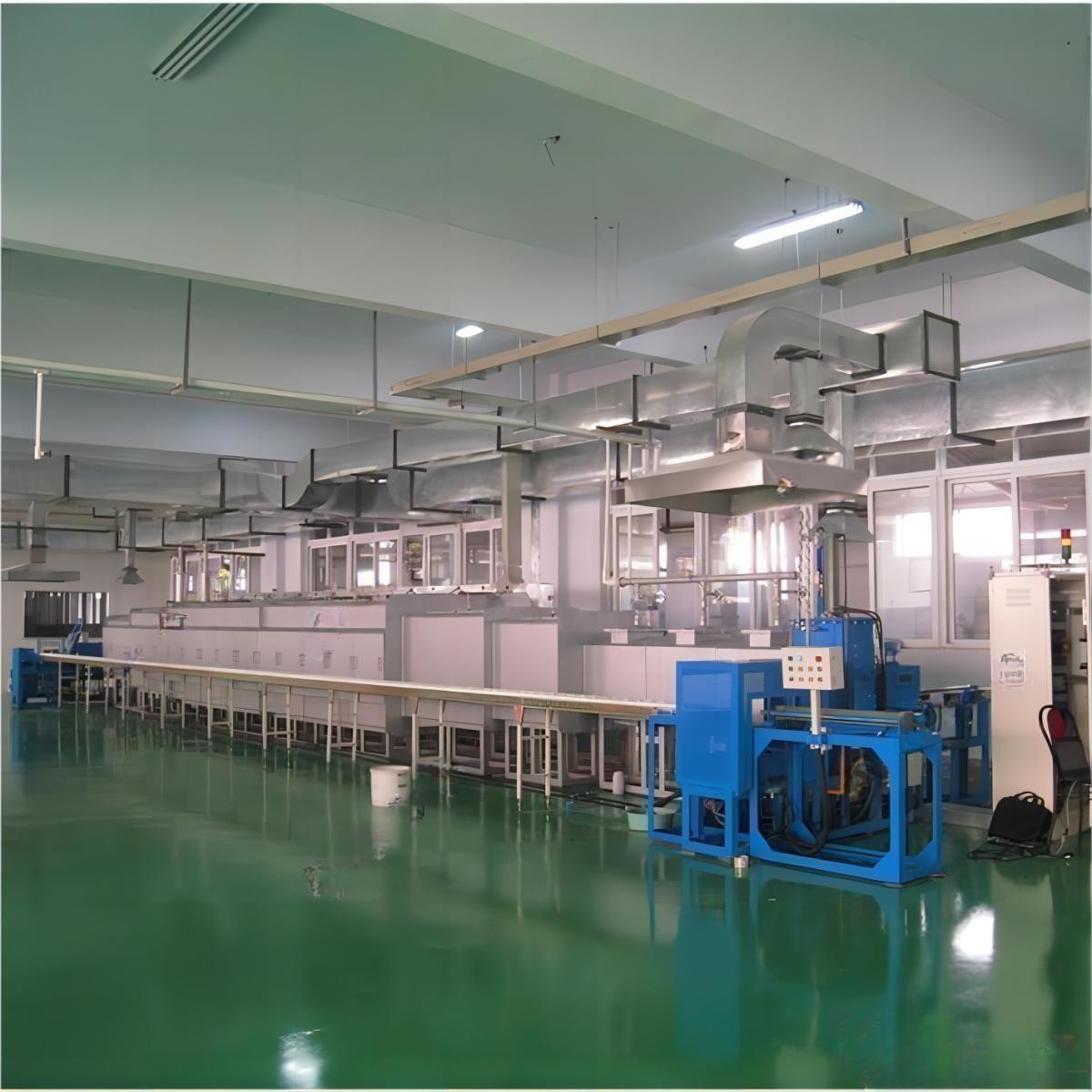

Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization 0

3﹑Advantage

1.With imported single-loop intelligent temperature control system

2.With classic hydraulic cylinder propulsion system

3.With high-quality high-corundum molybdenum wire plate, greatly improving the service life

4.High-quality imported insulation materials are used to greatly reduce production energy

consumption and furnace surface temperature

5.Fully automatic design, safe and reliable



4﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

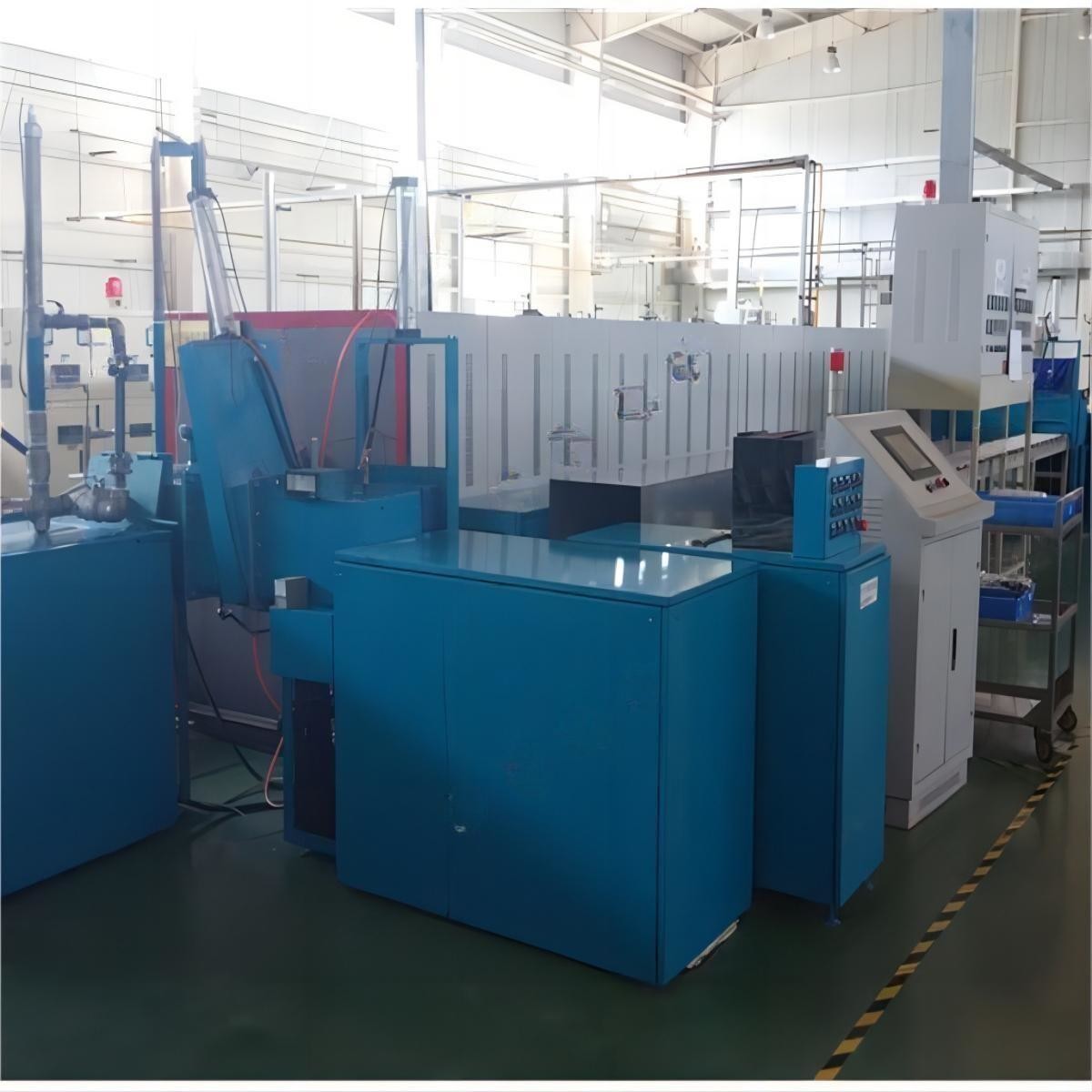

Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization 1



5﹑Customer Case in China



The first Mobile phone fast charging graphene heat dissipation film carbonization production line

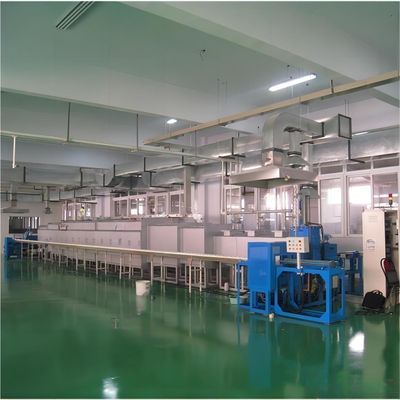

Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization 2

The first ITO target powder roller furnace continuous production line in china

Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization 3



6﹑Foreign Customer

Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization 4

7﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.



Industrial Hydrogen Reduction Furnace Customized Heat Treatment For Ceramic Metallization 5
