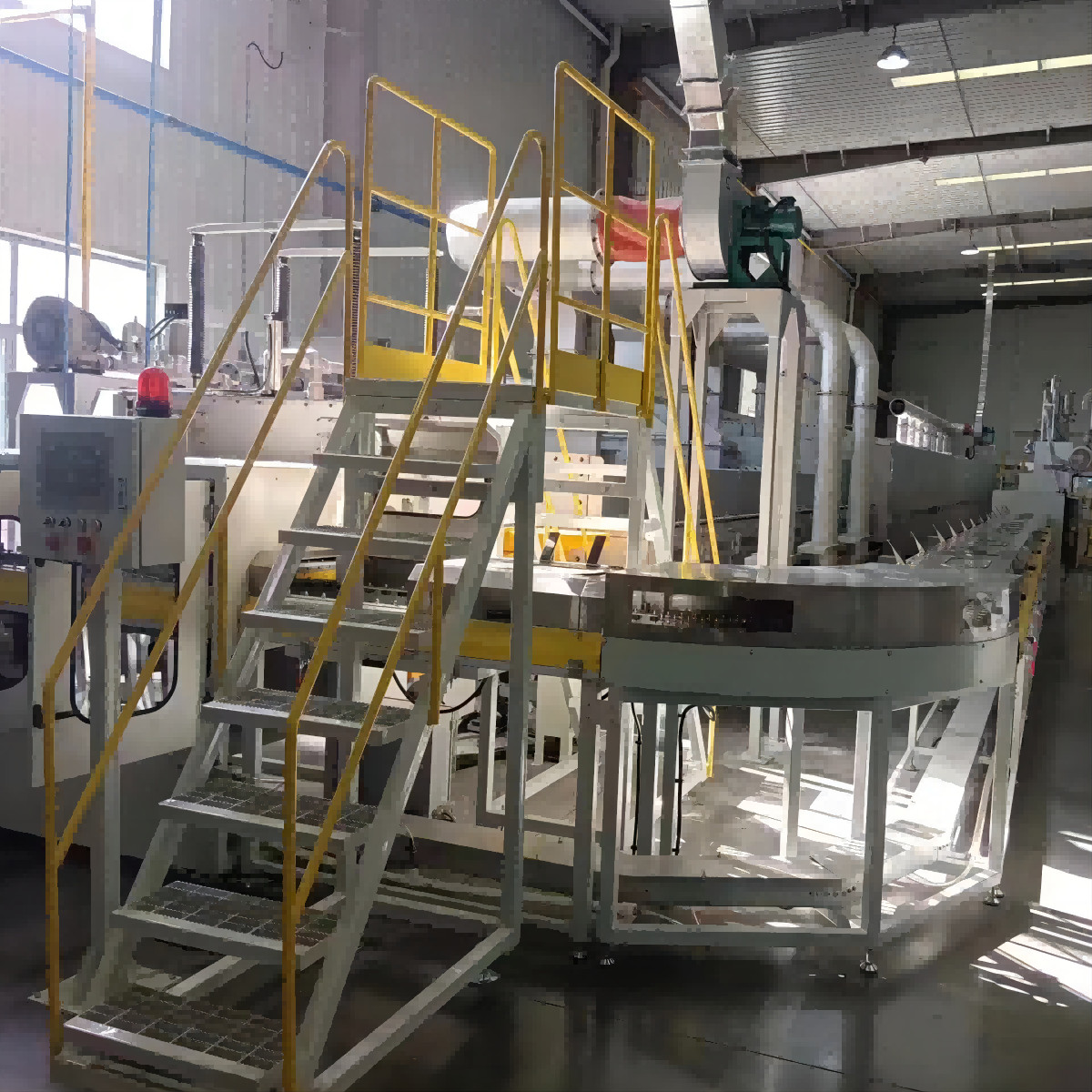

Activated Carbon High Temperature Carbonization RHK Roller Hearth Furnace

1
MOQ
Negotiable
Price
Activated Carbon High Temperature Carbonization RHK Roller Hearth Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Roller Material: Silicon Carbide
MAX Temperature: 1300℃
Working Temperature: 1250℃
Chamber Size: Customized
Furnace Size: Customized
Heating Method: Horizontal Heat
OEM: Can
ODM: Can
Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: RHK
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 100/month
Product Description

Activated Carbon High-Temperature Carbonization RHK Roller Hearth Furnace

As the key material of supercapacitors, the preparation of activated carbon is usually divided into two steps. The first is the activation of activated carbon, and the second is high-temperature carbonization. The activation of activated carbon needs to be carried out in a nitrogen-protected environment. The required temperature is about 900°C. Activated carbon will produce a large amount of alkaline corrosive gas during the activation process. Therefore, in the selection of heating elements, we use electric heating wire jackets. Corundum sleeve for protection.



1﹑Applicable Material



Lithium battery materials(anode and cathode material), advanced ceramic materials, high-purity alumina powder, catalysts, magnetic materials, rare earth materials



2﹑Technical Specification
MAX temperature 1000℃
Working temperature 900℃
Roller material silicon carbide /alumina ceramics.
Chamber size customized based on technical requirements
Arrangement 6 columns and 1 layers,4 columns and 1 layer,3columns and 1 layers, etc
Heating element Silicon carbide rod or high-temperature resistance wire
Heating method horizontal heating up and down



Activated Carbon High Temperature Carbonization RHK Roller Hearth Furnace 0



3﹑Advantage

1. Built with new refractory materials, arched structure on top, which has a long service life and uniform exhaust.

2. with excellent thermal efficiency, and the uniformity of temperature field can reach ±5°C.

3. Special intake and exhaust structure design can ensure unobstructed exhaust during glue removal.

4. Equipped with partition beams inside the Chamber, which can adjust and control the atmosphere and supply in each temperature zone.

5. Can be completely customized according to the actual process and requirements of customers.



4﹑Package and shipment

We will well pack the goods based on the kinds of furnaces and customer's requirements.

Activated Carbon High Temperature Carbonization RHK Roller Hearth Furnace 1
