Automatic temperature control Mesh belt furnaces for continuous heat treatment

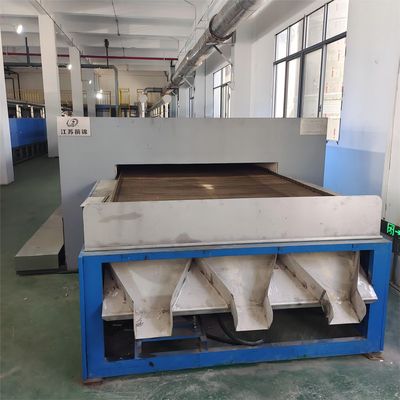

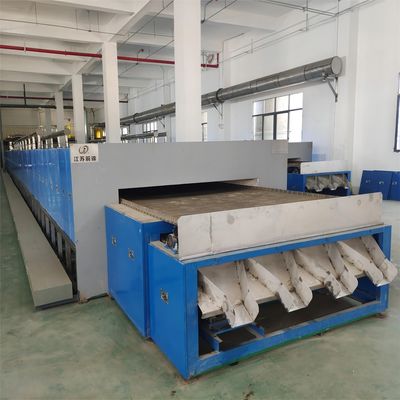

The Mesh Belt Kiln is a continuous kiln that transports products using a metal or resin belt conveyor. A gas supply and exhaust system can be installed and a heat source can be selected according to the process conditions.
The mesh belt furnace is composed of three parts: the furnace body, the mesh belt transmission system and the temperature control system.
Sintering, drying and annealing in the fields of catalysts, special ceramics, structural ceramics, electronic ceramics, functional materials, magnetic materials, electronic powders, electronic devices, etc.
| Item | Specifications and performance parameters |
| Kiln length | 6～60m |
| Belt width | 0.3～2m |
| Maximum operating temperature | ≤900℃ |
| Energy | natural gas or electricity |
| Heating method | burner or heating element |
| Number of heating zones | Determined by the temperature curve |
| Temperature control method | automatic temperature control |
| Belt speed | adjustable |
| Loading method | The material is placed directly on the mesh belt or using a stainless steel tray |
| Applicable material | Powder or granular materials, such as catalysts, inorganic salts, metal oxides, ceramic glass decals, etc. |
With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.
We will well pack the goods based on the kinds of furnace and customer's requirement.
