900C Atmosphere Box Furnace PID Intelligent Temperature Control Cathode Material Roller Hearth Furnace

1
MOQ
Negotiable
Price
900C Atmosphere Box Furnace PID Intelligent Temperature Control Cathode Material Roller Hearth Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Working Temperature: 900(℃)
Rated Temperature: 1000(℃)
Furnace Size: Customized
Rated Power: Customized
Temperature Control Method: PID Auto Control
Thermocouple: K Type
OEM: Can
ODM: Can
High Light:

900C Atmosphere Box Furnace

,

Atmosphere Box Furnace 900C

,

Cathode Material continuous roller hearth furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: Qianjin
Certification: ISO
Model Number: KSF-Q
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 300 PCS/Month
Product Description

PID Intelligent Temperature Control Cathode Material Atmosphere Box Roller Hearth Furnace

1﹑Atmosphere Box Furnace

This furnace uses silicon carbide rods as heating elements, and uses an intelligent temperature control module combined with a touch screen for centralized control. The furnace is made of alumina hollow balls, which have good resistance to rapid cooling and rapid heating, and good corrosion resistance. The sealing connection between the furnace shell and the furnace door adopts a silicon rubber sealing structure, and a water cooling chamber is provided to cool the furnace mouth. The furnace is built with alumina hollow spherical bricks, and silicon carbide rods are arranged above and below the furnace. The atmosphere used in the electric furnace is nitrogen, and a professional multi-channel uniform air intake system is designed to achieve the gas to reach all angles in the furnace effectively and uniformly. A one-way exhaust system is installed on the top of the furnace, the exhaust gas is discharged from the top chimney, and the high temperature valve controls the exhaust volume. There is also an exhaust valve and a drain valve at the bottom of the furnace for washing and drying the furnace. The control system is integrated with the furnace shell, which is located at the lower part of the furnace body for easy operation. This type of furnace is an ideal equipment for heat treatment of products under atmosphere protection. The appearance design of the electric furnace adopts the latest international style, which has many advantages such as simple and generous structure, beautiful appearance and simple operation.

2﹑Technical specification

Applicable material Cathode material
Working temperature 900℃
Rated temperature 1000℃
Sagger 330L*330W*100H mm(user-supplied)
Stacking type 2 columns, 2 rows, 2 floors
Processing capacity 30 kg/furnace
Chamber size 950L*950W*260H mm
Furnace size 1900L*2100W*2000H mm
Furnace material Alumina hollow ball light brick + 1260 type high-quality ceramic fiber
Top structure vault structure
Heating element Silicon carbide rods covered with corundum tubes
Temperature control stability ±1°C, using 30-segment intelligent temperature control module combined with touch screen control, with PID parameter self-tuning function
Temperature control points 4
Temperature measuring hole 1
Rate powder 56Kw
Furnace atmosphere air, oxygen, nitrogen
Furnace door and wiring cavity seal Water cooling + silicone rubber
Intake system Bottom porous air intake, flow meter control
Exhaust system Top 1 way exhaust
Thermocouple K type
Roller SiC Roller
Power Three-phase, 380VAC, 50Hz

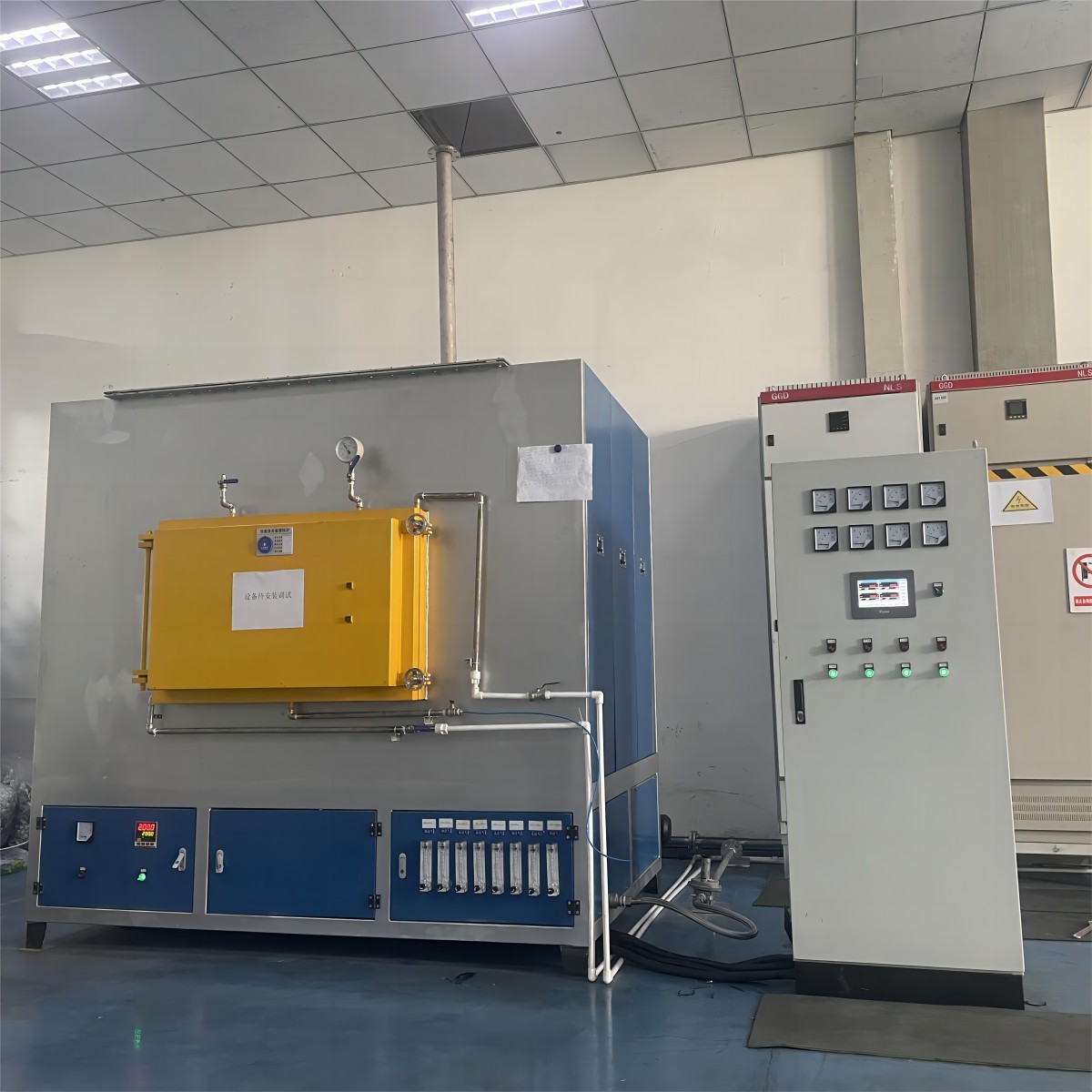

900C Atmosphere Box Furnace PID Intelligent Temperature Control Cathode Material Roller Hearth Furnace 0





3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 0



4﹑Customer Case in China



The first All-solid-state battery pilot production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 2

The first Mobile phone fast charging graphene heat dissipation film carbonization production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 3

The first ITO target powder roller furnace continuous production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 4

The first Hydrogen fuel cell industrial production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 5





5﹑Foreign Customer

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 7

6﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 8
