20-100KG Optional Atmosphere Roller Box Type Furnace For Sodium-Ion Battery Cathode Materials

1
MOQ
Negotiable
Price
20-100KG Optional Atmosphere Roller Box Type Furnace For Sodium-Ion Battery Cathode Materials
Features Gallery Product Description Request A Quote
Features
Specifications
Working Temperature: 800(℃)
Rated Temperature: 900(℃)
Furnace Size: Customized
Rated Power: Customized
Temperature Control Method: PID Auto Control
Thermocouple: K Type
OEM: Can
ODM: Can
High Light:

Atmosphere box type furnace

,

100KG box type furnace

,

20KG box type resistance furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: Qianjin
Certification: ISO
Model Number: KSF-Q
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 300 PCS/Month
Product Description

20-100KG Optional Atmosphere Box-Type Roller Furnace For Sodium-Ion Battery Cathode Materials

1﹑Atmosphere Box Furnace

This product uses silicon carbide rods as heating elements. Yudian intelligent temperature control module is combined with touch screen control. The furnace is built with alumina hollow spherical bricks, which has good rapid cooling and heat resistance and good corrosion resistance. The heating rods are arranged above and below the furnace.

2﹑Technical specification

Working temperature 800℃
Rated temperature 900℃
Sagger 330×330×120 mm(user-supplied)
Stacking type 3 columns, 4 rows, 2 floors
Chamber size 1280L*950W*360H mm
Furnace size 3000L*2100W*2500H mm
Furnace material Alumina hollow ball light brick + mullite poly light brick + 1260 type high-quality ceramic fiber
Top structure vault structure
Heating element

Silicon carbide rods, the upper rods are covered with corundum tubes

(anti-corrosion), and the furnace chamber is arranged up and down

Temperature control stability

±1°C, using 30-segment intelligent temperature control module combined

with touch screen control, with PID parameter self-tuning function

Temperature control points 4
rated power 60Kw
External surface temperature ≤40℃+room temperature
Furnace atmosphere Nitrogen
Intake system Bottom and both sides air intake, flow meter control
Exhaust system Top exhaust, high temperature valve control
Thermocouple K type
Roller SiC Roller
Power supply Three-phase, 380±5%VAC, 50Hz

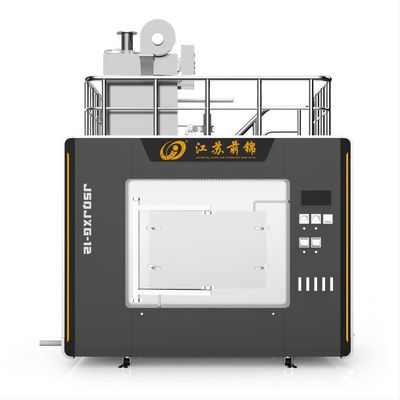

20-100KG Optional Atmosphere Roller Box Type Furnace For Sodium-Ion Battery Cathode Materials 0





3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 0



4﹑Customer Case in China



The first All-solid-state battery pilot production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 2

The first Mobile phone fast charging graphene heat dissipation film carbonization production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 3

The first ITO target powder roller furnace continuous production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 4

The first Hydrogen fuel cell industrial production line in china

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 5





5﹑Foreign Customer

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 7

6﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.

Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 8
