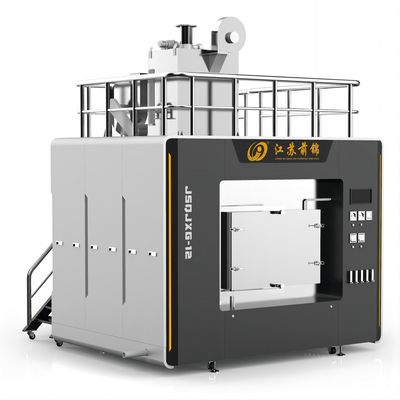

The electric furnace is suitable for inert atmosphere conditions, and is designed with a professional multi-channel uniform air intake system to achieve effective and uniform gas access to all angles in the furnace. An exhaust system is installed on the top of the furnace, and the exhaust gas is discharged from the top chimney, and the high temperature valve controls the exhaust volume.
| Working temperature | 800℃ |
| Rated temperature | 900℃ |
| Sagger | 330×330×120 mm(user-supplied) |
| Stacking type | 3 columns, 4 rows, 2 floors |
| Chamber size | 1280L*950W*360H mm |
| Furnace size | 3000L*2100W*2500H mm |
| Furnace material | Alumina hollow ball light brick + mullite poly light brick + 1260 type high-quality ceramic fiber |
| Top structure | vault structure |
| Heating element |
Silicon carbide rods, the upper rods are covered with corundum tubes (anti-corrosion), and the furnace chamber is arranged up and down |
| Temperature control stability |
±1°C, using 30-segment intelligent temperature control module combined with touch screen control, with PID parameter self-tuning function |
| Temperature control points | 4 |
| rated power | 60KW |
| External surface temperature | ≤40℃+room temperature |
| Furnace atmosphere | Nitrogen |
| Intake system | Bottom and both sides air intake, flow meter control |
| Exhaust system | Top exhaust, high temperature valve control |
| Thermocouple | K type |
| Roller | SiC Roller |
| Power supply | Three-phase, 380±5%VAC, 50Hz |
