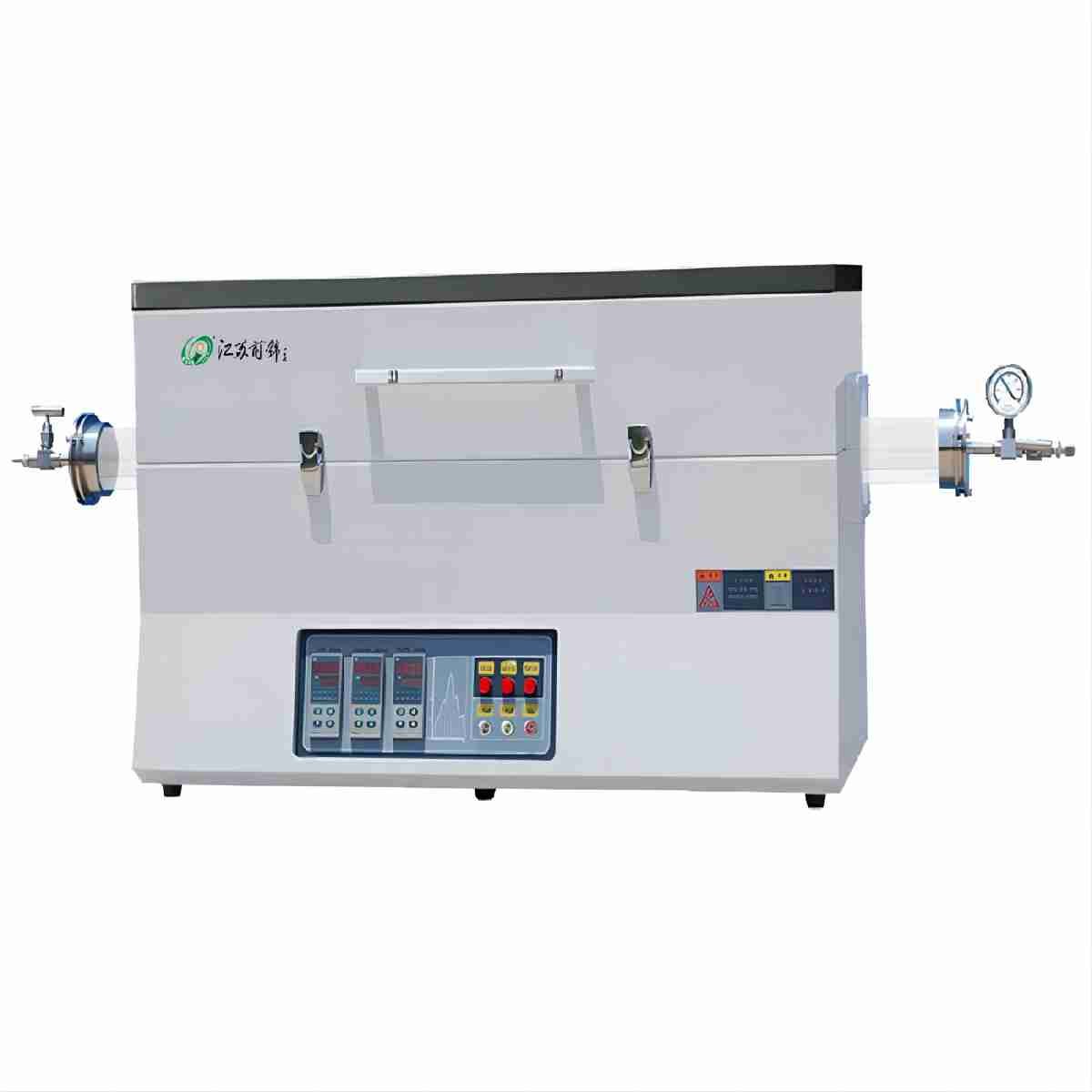

1200°C Dual Temperature Zone Tube Furnace
Multi-zone tube furnaces are mainly used in CVD experiments and environments that require multiple temperature gradients. Setting multiple temperature zones to the same temperature can be used as an extended single-zone tube furnace.
2﹑Technical specification
| Model No. | KTF1200-QJ60B | KTF1200-QJ80B | KTF1200-QJ100B |
| Working temperature | ≤1150℃ | ≤1150℃ | ≤1150℃ |
| Heating rate | 20℃/min | 20℃/min | 20℃/min |
| Number of temperature zones | 2 | 2 | 2 |
| Length of Heating zone | 220+220mm | ||
| Length of Constant temperature zone | 130+130mm | ||
| Diameter of Quartz tube | 60mm | 80mm | 100mm |
| Temperature control method | 30 segment program PID auto control | ||
| Temperature control accuracy | ±1℃ | ||
| Heating element | heating wire doped molybdenum iron chromium aluminum | ||
| Powder | 220V/5KW | ||
| Furnace size | 630*470*610mm | ||
With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.
We will well pack the goods based on the kinds of furnace and customer's requirement.
