OEM ODM Design Ceramic Tunnel Kiln Energy Savings

OEM ODM Design Ceramic Tunnel Kiln Energy Savings
Features Gallery Product Description Request A Quote
Chamber Size: Customized
Kiln Car Size: Customized
Design Temperature: Customized
Working Temperature: Customized
Number Of Spray Guns: Customized
Cart Form: Hydraulic Car Feeder
OEM: Can
ODM: Can
High Light:

oem ceramic tunnel kiln


odm ceramic tunnel kiln

Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: QSD
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 100PCS/month
Product Description

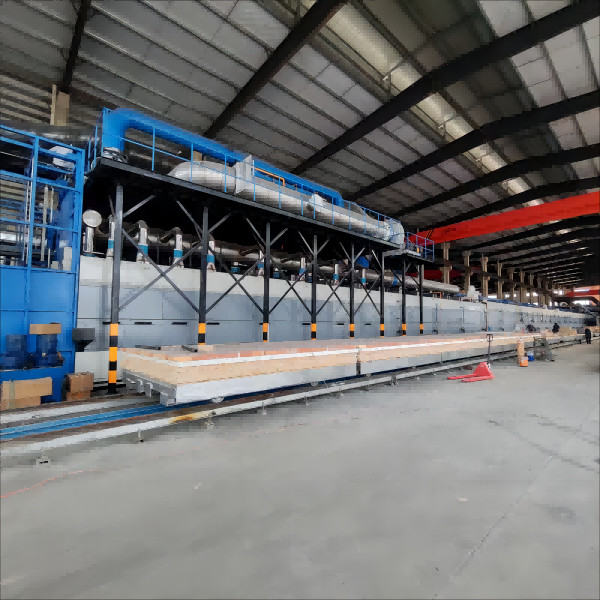

OEM ODM Design Ceramic Tunnel Kiln Energy Savings


The Tunnel Kiln is a firing kiln that is constructed on-site and operates by transporting products on kiln cars through the furnace. It delivers labor and energy savings and can reduce the amounts of fuel used and amounts of CO2 emitted.


2﹑Technical specification

Item unit QSD Gas Tunnel kiln series
    QSD 26 meters QSD 48 meters QSD 78meters
Chamber size mm 26000*1500*60048 48000*1500*80078 78000*1800*600
Kiln car size(L*W) mm 1200*600 1200*1200 1500*1500
Design temperature 1700 1300 1100
Working temperature ≤1600 ≤1250 ≤1050

Number of spray guns

PCS 24 40 60

Number of temperature zones

PCS 5 10 15

Temperature uniformity

±8 ±9 ±12.5
Temperature fluctuation in constant temperature zone ±2 ±2 ±2
Thermocouple graduation number   B S K
Control method Automatic or manual temperature control, fan frequency conversion control
Cart form Hydraulic trolley
Applicable material ceramics, refractory materials, powder or granular materials, etc.
Lining material Heavy or light refractory bricks
Gas source gas


OEM ODM Design Ceramic Tunnel Kiln Energy Savings 0


1. Continuous production, short cycle, large output, and high quality.

2. Using the countercurrent principle to work, so the heat utilization rate is high, fuel economy, because the heat retention and waste heat utilization are very good, so the fuel is very economical, which can save fuel by about 50-60% compared with the downdraft kiln.

3. The firing time is shortened. Compared with ordinary large kilns, it takes 3-5 days from loading to emptying, while tunnel kilns can be completed in about 20 hours.

4. Save labor. Not only is it easy to operate during firing, but the kiln loading and unloading operations are carried out outside the kiln, which is also very convenient, improves the working conditions of the operators, and reduces labor intensity.

5. Improve quality. The temperature of the three parts of the preheating zone, firing zone, and cooling zone is often kept within a certain range, and it is easy to grasp the firing law, so the quality is also good and the damage rate is low.

6. The kiln and kiln furniture are durable. Because the kiln is not affected by rapid cooling and rapid heating, the service life of the kiln body is long, and it is generally repaired once every 5-7 years.


4﹑Package and shipment

We will well pack the goods based on the kinds of furnaces and customer's requirements.
