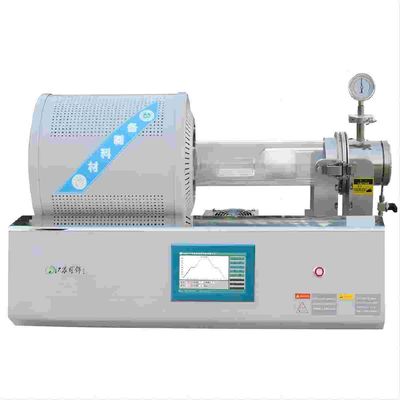

Small Rapid Annealing Heat Treatment Furnace Electric For Heating And Cooling Of Thin Samples

Small Rapid Annealing Heat Treatment Furnace Electric For Heating And Cooling Of Thin Samples
Features Gallery Product Description Request A Quote
Model No.: RTP1100S
Max Temperature: 1100℃
Rated Temperature: 1000℃
Temperature Control Accuracy: ±1℃
The Fastest Heating Rate: 20℃/S
The Fastest Cooling Rate: 75°C/min
Control Method: Intelligent PID
Furnace Size: 610*400*410mm(L*W*H)
High Light:

Annealing Heat Treatment Furnace


Heat Treatment Furnace Electric


1100C furnace high temperature

Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: RTP
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 100PCS/month
Product Description

Electric Small Rapid Annealing Furnace For Heating And Cooling Of Thin Samples


This small rapid annealing furnace integrates the most ingenious structural design and unique heating method, which greatly reduces the volume and power, and at the same time, the heating and cooling rate is several times higher than that of traditional annealing furnaces. It can pass through the atmosphere and vacuumize, which meets the process requirements of many users for rapid annealing of small samples. The most important thing is that its power is only 1.2kw, which is one-tenth of the conventional infrared heating rapid annealing furnace, and it can be plugged into a common socket to work.



Used in samples that require extremely rapid temperature rise and fall


2﹑Technical specification


Item MINI RTP rapid annealing furnace
Model No. RTP1100S
Max temperature 1100℃
Rated temperature 1000℃
Temperature control accuracy ±1℃
The fastest heating rate 20℃/S
The fastest cooling rate 75°C/min
Control method Intelligent PID
Heating method short wave infrared heating
Heating cavity structure Quartz tube
Sample cooling Natural cooling or cooling gas
Cooling gas regulation Rotameter (100~1000ml/min) (optional)
Over temperature protection Cut off the main circuit when the temperature is too high
Constant temperature zone size 35mm
Carrier size 30*25mm
sensor type K TYPE
Vacuum system 1L/S double cascade vacuum system (optional)
Vacuum degree of the whole machine 3Pa (optional CHY-4C vacuum pump system)
Extraction port size KF25
Air supply port size 1/4 inch double ferrule
Rated power 1.5KW
Rated voltage AC220V,50Hz
Weight 15kg
Accessories 1 crucible tongs, 1 manual.
Furnace size 610*400*410mm(L*W*H)



1. Rapid heating up to 50°C/S;

2. Double-layer furnace tube structure, the contact between the atmosphere and the sample is more uniform;

3. Directly measure the surface temperature of the sample, and the temperature measurement is more accurate;

4. The furnace can automatically move left and right according to the settings, which can meet more experimental applications.



With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

Gap-type varied-temperature heating trolley furnace 0


5﹑Customer Case in China


The first Mobile phone fast charging graphene heat dissipation film carbonization production line

Gap-type varied-temperature heating trolley furnace 1

The first ITO target powder roller furnace continuous production line in china

Gap-type varied-temperature heating trolley furnace 2


6﹑Foreign Customer

Gap-type varied-temperature heating trolley furnace 3

七﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.
