HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace

1
MOQ
Negotiable
Price
HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber Size: Customized
Heater: Molybdenum-Lanthanum Alloy Wire
Working Temperature: 1600℃
Control Accuracy: ±1℃
Temperature Control Method: PID
Heating Rate: 《20℃/MIN
Max Power: Customized
OEM: Can
High Light:

HTCC MLCC Aluminum Nitride Substrate Furnace

,

HTCC MLCC Debinding Sintering Furnace

,

Aluminum Nitride Substrate Debinding Sintering Furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: QIANJIN
Certification: ISO9001
Model Number: VF
Payment & Shipping Terms
Packaging Details: plywood package
Delivery Time: 30 work days
Supply Ability: 100PCS/month
Product Description

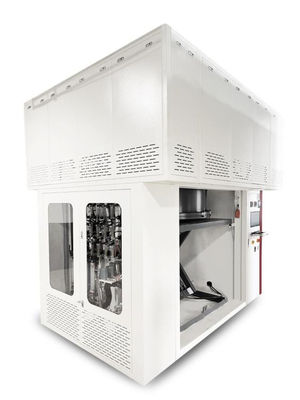

HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace



1﹑Description

This series is a lifting vacuum atmosphere furnace (binder removal and sintering integrated furnace) specially developed for HTCC/ceramic metallization and other industries; it adopts a newly designed double-layer air-cooled sealed shell; the heat preservation adopts a hollow ball brick furnace made of imported high-purity alumina material, which has higher thermal efficiency and strength; the heating adopts domestic high-quality molybdenum-lanthanum alloy wire; the reasonable temperature field structure design effectively ensures the good temperature uniformity of the furnace; the PID temperature control is adopted to make the furnace temperature control accuracy reach ±1℃; the equipment is safe and reliable, simple to operate, high-temperature control accuracy, good heat preservation effect, large temperature range, high furnace temperature uniformity, and uniform atmosphere.



2﹑Technical specification

Chamber size
Φ200X300mm
Φ500X500mm
Design temperature 1750℃
Max temperature
1650℃
Heater Molybdenum-Lanthanum Alloy Wire
Control accuracy ±1℃
Temperature control method PID automatic adjustment
Maximum power Based on the size
Ventilation type Inert gases such as nitrogen and argon
Lock door structure Electric door lock structure
Control system Touch screen + fully automatic PLC control system



3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace 0



4﹑Customer Case in China



The first Mobile phone fast charging graphene heat dissipation film carbonization production line

HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace 1

The first ITO target powder roller furnace continuous production line in china

HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace 2



5﹑Foreign Customer

HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace 3

6﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.

HTCC MLCC Aluminum Nitride Substrate Debinding Sintering Furnace 4
