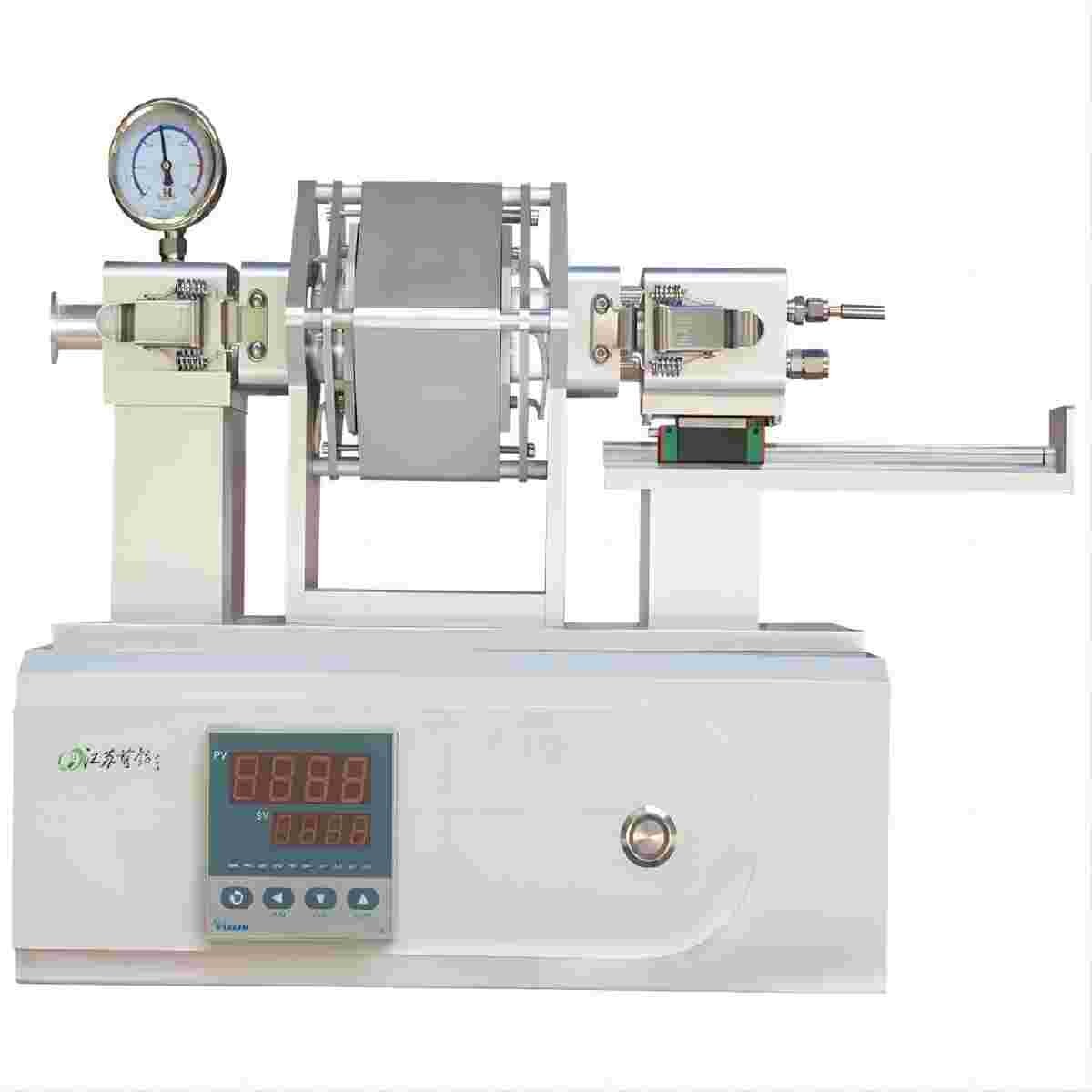

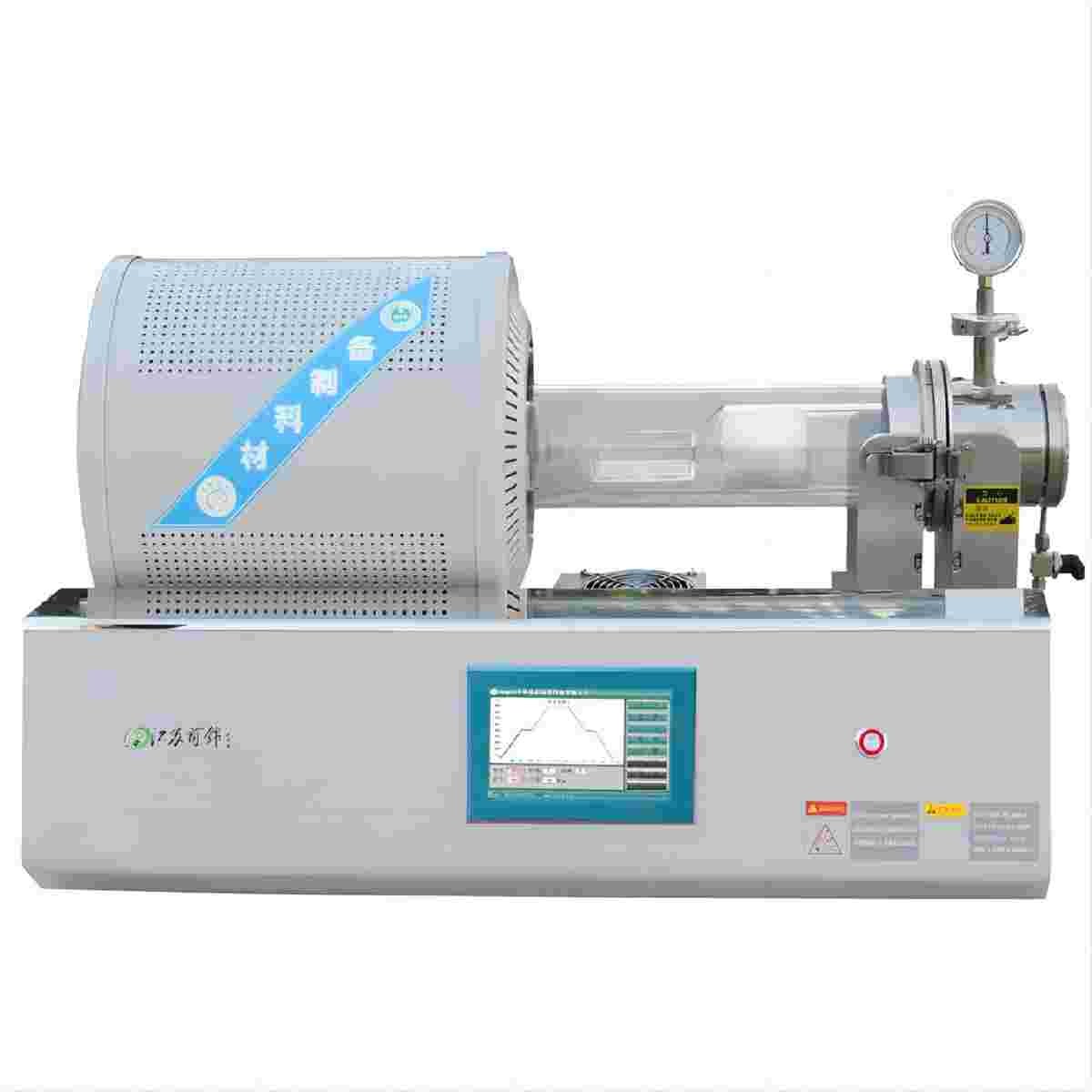

Electric Batch Annealing Furnace For Heating And Cooling Of Thin Samples
This equipment adopts the self-developed intelligent AIO (All In One) control system, which realizes the automatic left and right movement of the furnace. The infrared heating method enables the sample to heat up quickly. After the sample is heated to the set temperature and time, the furnace will automatically move away from the sample for heating to cool of the sample rapidly . The optional AIO intelligent control system not only realizes the automatic coordinated control of the opening of the vacuum system, the on-off of the protective atmosphere and the on-off of the cooling gas, but also automatically balances the pressure in the furnace tube, which truly realizes convenient operation and safety .
Extremely rapid heating and cooling of thin samples
| Item | RTP rapid annealing furnace |
| Model No. | RTP1100 |
| Rated temperature | 1000℃ |
| Uniformity of temperature field | ±5℃ |
| Furnace heating rate | ≥50℃/S |
| The fastest cooling rate | ≥10℃/S(Empty furnace holding time≤30S) |
| Control system | Intelligent AIO Operating System |
| Operation interface | 7 inch touch screen |
| Heating method | Short-wave infrared heating (halogen lamp) |
| Heating cavity structure | Double Quartz Tube |
| Outer tube diameter | 100mm |
| Inner Tube Diameter | 80mm |
| Gas protection method | Inner tube intake, outer tube outlet |
| Over temperature protection | Cut off the main circuit when the temperature is too high |
| Style valid space | Place 3.5 inch sample |
| Vacuum system | Mechanical pump/molecular pump unit (need to be selected separately) |
| Vacuum degree of the whole machine | Mechanical pump≤5Pa, molecular pump unit 10-4Pa |
| Extraction port size | KF16 |
| Air supply port size | 1/4 inch double ferrule |
| Flange cooling method | Water cooling (optional water cooler) |
| Vacuum display | pointer pressure gauge |
| Rated power | 15KW |
| Furnace size | 950*500*560mm |
| Weight | 50kg |
1. Rapid heating up to 50°C/S;
2. Double-layer furnace tube structure, the contact between the atmosphere and the sample is more uniform;
3. Directly measure the surface temperature of the sample, and the temperature measurement is more accurate;
4. The furnace can automatically move left and right according to the settings, which can meet more experimental applications.
